Creasing, Cutting, &
Perforating Rule |
|
 |
|
|
Zimmer Perforating rule is punched with state of the art equipment to assure
blade to blade consistency. Zimmer then precision grinds the rule with
a true double bevel to eliminate any burr which may have formed. While
this is a more expensive process, the results are superior to simply
punching rule. While it would
take many pages to list all varieties of rule produced we have listed
the most popular sizes. Please call for availability and pricing of
other rule. |
|
 |
.918h x 2pt hard x 30" |
Pieces |
Price per piece |
|
Teeth per inch |
1-9 |
$4.95 |
(1.98/ft) |
8 |
10-19 |
3.95 |
(1.58/ft) |
12 |
20-49 |
3.15 |
(1.26/ft) |
16 |
50-99 |
2.85 |
(1.14/ft) |
|
100+ |
call |
|
*** Mix &
match rules for quantity pricing *** |
|
 |

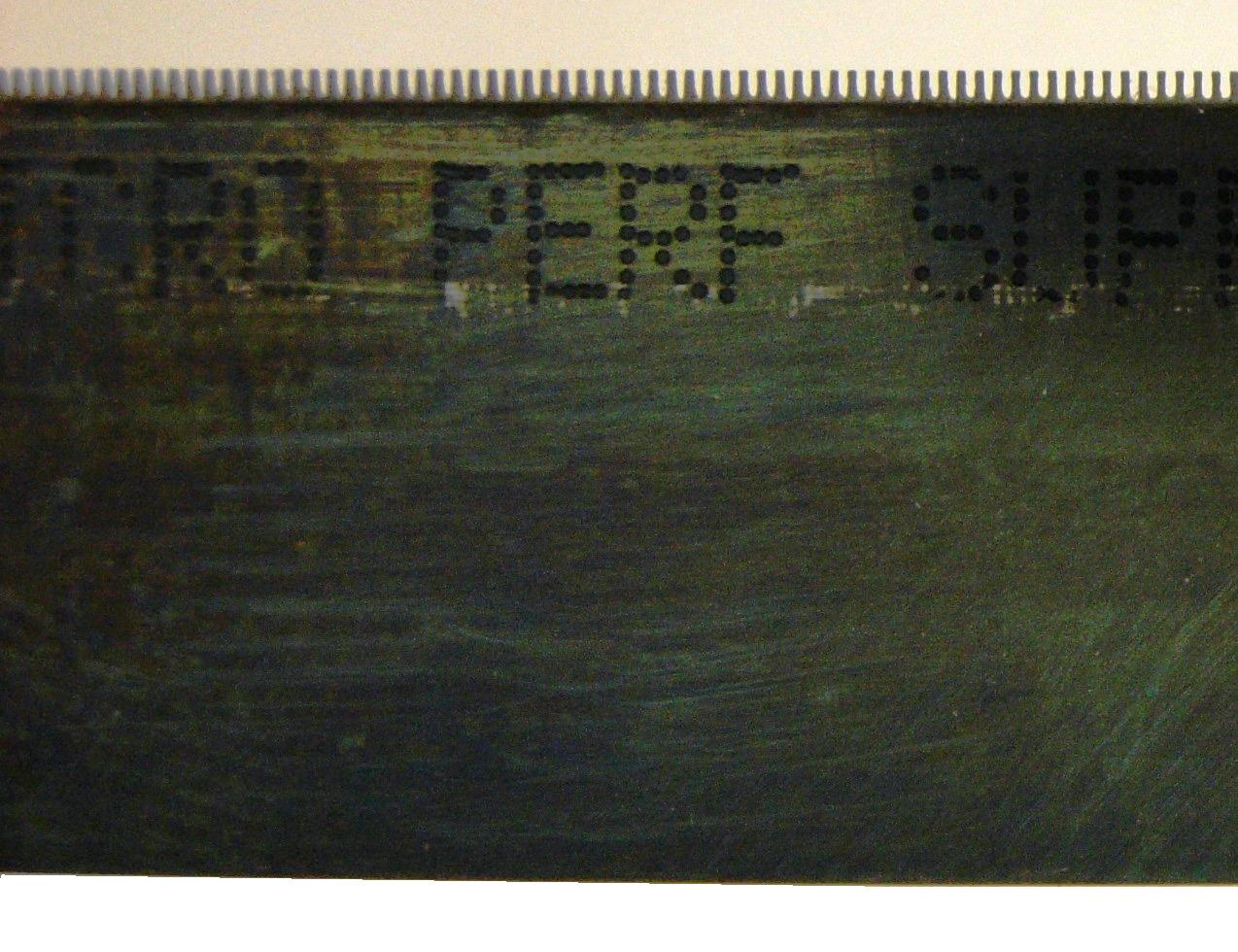

Invisible MicroPerforating Rule
is
ideal for single sheet or other thin applications.
The teeth of
this rule are made to a depth of .010” It
is most often produced in a hard temper and therefore, is not
easily bendable. However, it can be specially ordered in lower tempers
for applications requiring bending. |
.918h x 2pt MH x 30" |
Pieces |
Price per piece |
|
Teeth per inch |
1-9 |
$9.95 |
(3.98/ft) |
30 |
10-19 |
9.25 |
(3.70/ft) |
50 |
20-49 |
8.65 |
(3.46/ft) |
70 |
50+ |
call |
|
 |
Micro-Max MicroPerforating Rule
is made by EDM (Electric Discharge Manufacturing) equipment.The teeth of
this rule are made to a depth of .030” and are almost perfectly square.
This rule is ideal for thicker, multi-part or multi-ply applications. It
is most often produced in a very hard temper and therefore, is not
easily bendable. However, it can be specially ordered in lower tempers
for applications requiring bending. |
.918h x 2pt MH x 30" |
Pieces |
Price per piece |
|
Teeth per inch |
1-9 |
$16.95 |
(6.78/ft) |
30 |
10-19 |
15.95 |
(6.38/ft) |
50 |
20-49 |
14.95 |
(5.98/ft) |
70 |
50+ |
call |
|
*** Mix &
match rules for quantity pricing *** |
Creasing
(scoring) rule comes standard with a full radius edge on one
side and a square edge with broken corners on the back edge. |
2pt MH x 30" |
Pieces |
Price per piece |
|
.890h |
1-9 |
$3.65 |
(1.46/ft) |
.900h |
10-19 |
2.90 |
(1.16/ft) |
.910h |
20-49 |
2.30 |
(.92/ft) |
.918h |
50-99 |
1.95 |
(.78/ft) |
|
100+ |
call |
|
*** Mix &
match rules for quantity pricing *** |
Cutting
rule is precision ground using a proprietary process that
combines sharpness for improved cutability with smoothness for reduced
dust. All aspects of production are carefully monitored to assure tight
tolerance and consistent bendability. |
 |
 |
 |
Center Bevel |
|
Side Bevel |
|
|
2pt MH x 30" |
Pieces |
Price per piece |
|
.890h |
1-9 |
$3.65 |
(1.46/ft) |
.900h |
10-19 |
2.90 |
(1.16/ft) |
.910h |
20-49 |
2.30 |
(.92/ft) |
.918h |
50-99 |
1.95 |
(.78/ft) |
|
100+ |
call |
|
*** Mix &
match rules for quantity pricing *** |
|
